                Current location:Home > Products JXLD,JBLD series single fulcrum frame

                JXLD,JBLD series single fulcrum frame

                2018/8/7

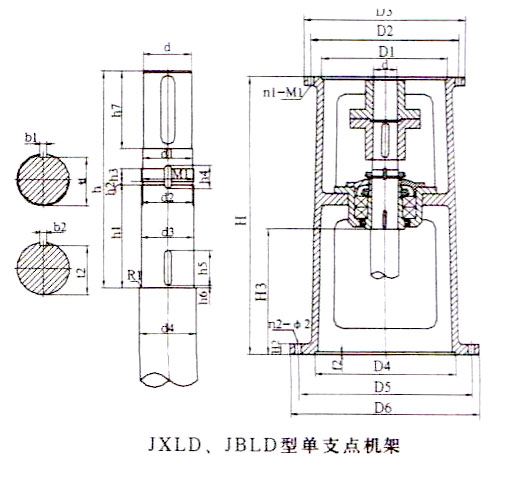

                JXLD,JBLD series single fulcrum frame
                The JXLD type of this frame series is suitable for connecting with XLD cycloid pin wheel planetary reducer and CFL planetary gear reducer. The JBLD type is suitable for connecting with BLD cycloid reducer. In order to make the assembly and maintenance of the mixing shaft and the bearing chamber convenient, the company improves the design of the bearing chamber structure, and enlarges the bearing chamber of the frame JBLD2, JBLD3 and JBLD4 matched with BLD2, BLD3 and BLD4 to make it consistent with the thicker mixing shaft.
                >>a.Type I is normal, type II is increased.
                >>b.The models and specifications of the coupling have been selected in this series of frames. Please note them together.
                >>c.H4 refers to the distance between the upper end of the rack and the middle point of the bearing chamber.
                >>d.The JXLD1 to JXLD6 (JBLD1 to JBLD4) type joint is the right half type, and the rest are left half type. N1 ~ M1 are all through holes.
